EDIT (2026-05-08) DISCLAIMER : !!! DO NOT USE WHATEVER YOU SEE HERE IN REAL LIFE SITUATION. THE NUMBERS ARE OFF BY LIKE 10 TIMES. I don’t plan to debug it very soon.
Context: I was trying to make sure gas system in my airsoft[1] gun will not destroy itself or shoot metal projectile in my face due to mechanical failure.
I make this so I can see all the parameters I need in one glance.
- Input CO2 cartridge size
- Set minimum volume with safe estimate cartridge dry volume
- Set maximum volume to account for expansion chamber
- Set temperature range I expect it to operate in

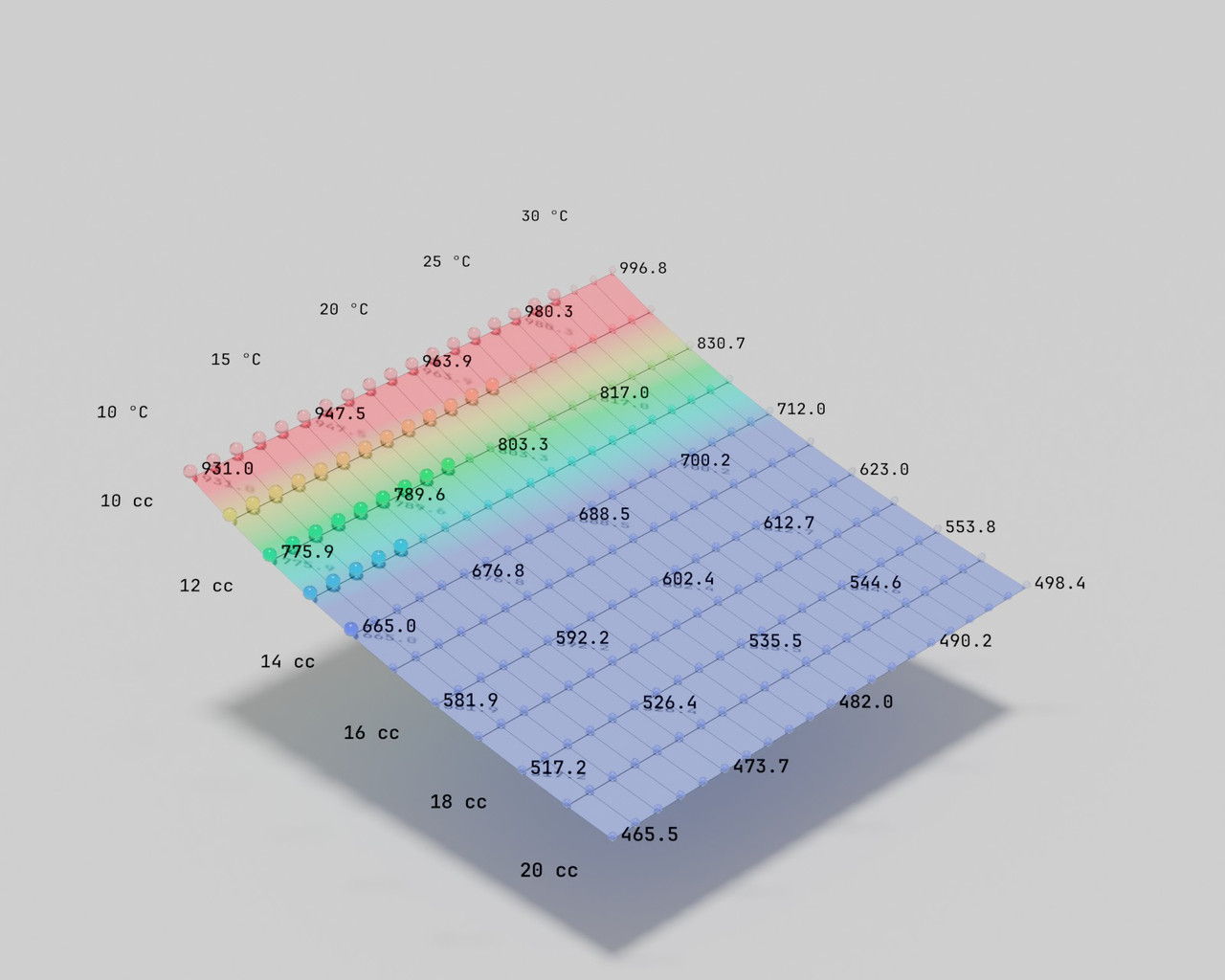

Result is pressure gradient plane (PSI) and its phase
small sphere = gas
large sphere = non-gas (liquid, supercritical fluid)
Color gradient for pressure regulator safe operation range
dear mother of god
It’s reusing very few nodes for many connections, no node group nesting so it looks messy. Unless it is modular and I can reuse it in other scenario, no point in spending more time on it just to make it look better or save few milliseconds per run.
